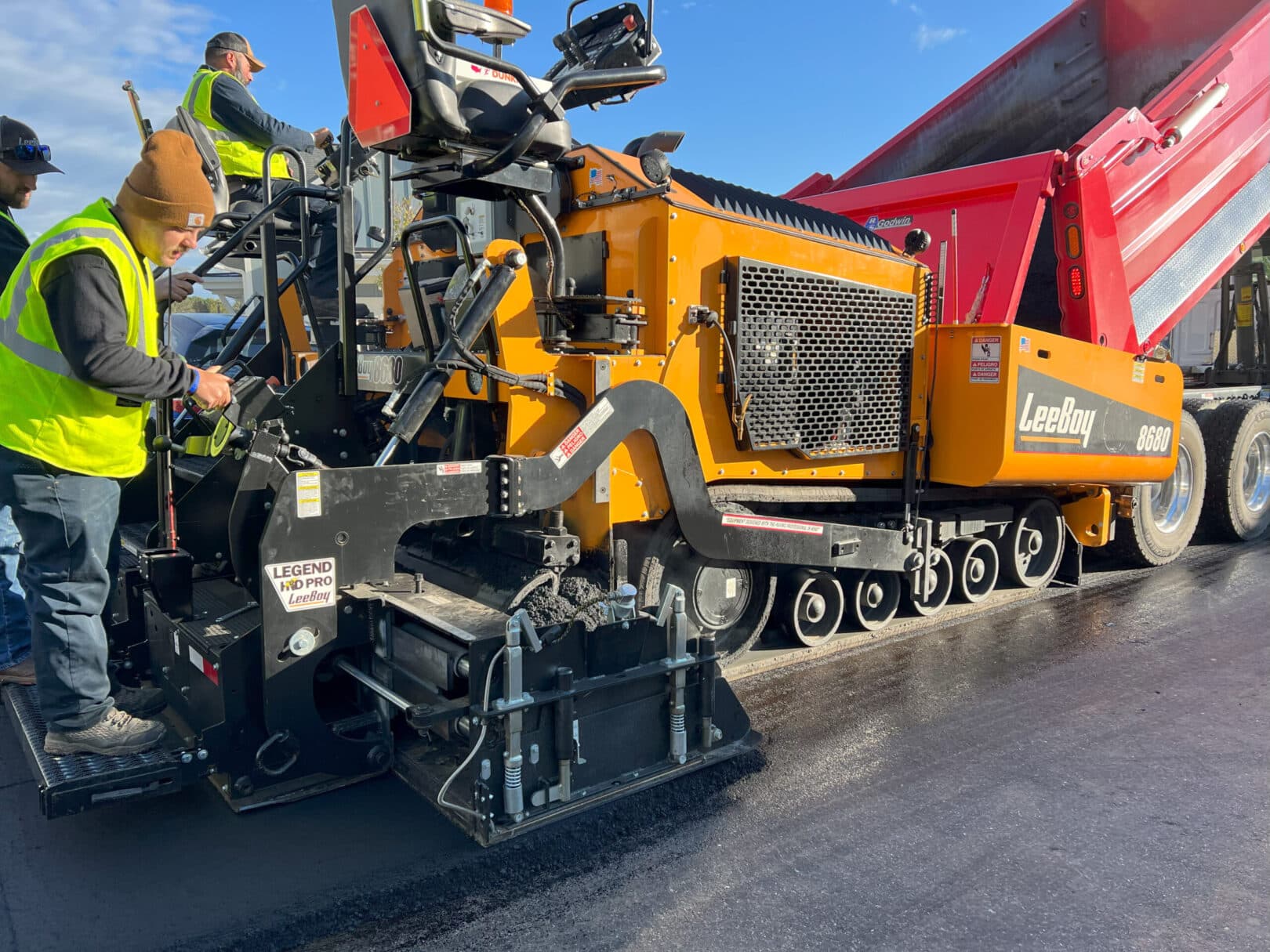

The LeeBoy 8680 Asphalt Paver is a game-changing machine designed to meet the needs of contractors seeking a powerful solution at the upper end of heavy commercial class pavers. As LeeBoy’s largest tracked asphalt paver to date, it bridges the gap between commercial and highway-class pavers, offering resilient features and powerful performance for large-scale projects.

Advantages of the LeeBoy 8680 for Contractors

The LeeBoy 8680 Asphalt Paver offers numerous advantages for paving professionals:

• Increased Production Capacity: Powered by a 210 hp Kubota Tier 4 Final engine, the 8680 is capable of handling larger production jobs and a higher volume of road paving projects.
• Comfort and Efficiency: High-speed smooth rubber tracks ensure a comfortable ride, while user-friendly controls enhance operational efficiency, allowing operators to focus on the task at hand.
• Versatile Applications: This machine is ideal for a wide range of projects, including state highways, county roads, subdivisions, and large distribution center parking lots.’

Why the 8680 Stands Out

The LeeBoy 8680 Asphalt Paver is engineered for contractors seeking a balance of power and versatility. While it’s not a 40,000-pound mainline paver, it offers more weight and capability than smaller commercial models. According to Chris Broome, Senior Product Manager at LeeBoy, “There was a distinct gap in the market for an asphalt paver this size. The 8680 addresses this need with higher production and horsepower for larger jobs in the heavy commercial class.”

More than just a machine, the 8680 is a comprehensive solution for paving professionals. It combines the efficiency of smaller pavers with the durability of heavy-duty units, making it a staple in the industry. Its innovative design features a 14-inch rubber band that provides 90 inches of ground contact, effectively distributing weight and ensuring optimal performance on various surfaces.

Designed for Ease: User-Friendly Controls of the 8680

LeeBoy’s ultimate goal with the 8680 is to engineer a machine that is intuitive and consistent for operators. The 8680 features flexible operator positioning with two high deck positions that can be adjusted to mid-level or allow the operator to ride on the screed, ensuring comfort and accessibility.

The control layout is familiar to users of the 8530 and 8616 models, enabling a seamless transition between machines. Operators can easily switch from an 8616 to the 8680 and be ready to work immediately, minimizing downtime.

Operators benefit from dual swing-out consoles equipped with intuitive icon-based keypads and a touchscreen display. The weather-proof control panel provides critical information, including conveyor and auger speed, ground speed, and hydraulic pressures, enhancing operational efficiency.

Additionally, the ability to swivel out at up to a 45-degree angle significantly improves the visibility of the hopper and the ground in front and behind the machine. These user-friendly features combine to enhance operational efficiency, reduce operator fatigue, and improve overall productivity on the job site.

Optimized Performance: Addressing Contractor Needs

The 8680 is equipped with features that address common challenges faced by paving contractors. The under-augur cutoffs help control the head of material to the screed to leave less material at the end of a pass and create a more seamless mat.

Key Features:

• Powerful Engine: Equipped with a 210 hp Kubota Tier 4 Final engine, the 8680 provides unmatched power and efficiency, ensuring it can tackle the most demanding paving jobs without breaking a sweat.
• Advanced Drive System: The paver features high-speed smooth rubber tracks with oscillating bogeys, a four-speed drive system, and power tunnel shields, all of which contribute to its superior performance and maneuverability on various terrains.
• Hydraulic System: Variable volume hydraulic pumps for each drive, with a load sense pump for augers, conveyors, and cylinder functions. The system includes all-weather, all-temperature hydraulic oil and 220,000 BTU oil coolers.
• Enhanced Screed Technology: Featuring an upgraded LB5 Screed enhanced for this larger machine. Weighing 5,200 pounds allows for paving widths up to 15’6″, providing flexibility for diverse projects.

As the largest paver in its class, the 8680 includes specialized gates that eliminate the need for manual shoveling, and streamlining operations on the job site. Additionally, the ability to raise and lower the 14-inch augers ensures consistent material flow, resulting in a smooth mat finish that meets the high standards of the industry.

Chris Broome emphasizes the impact of these features: “These highway-class features are going to give this commercial-class machine great results. Increased performance, efficiencies, and consistency will all be seen with these features on the 8680 asphalt paver.”

Specifications:

• Weight: 28,850 lbs
• Engine: 210 hp Kubota Tier 4 Final Diesel Engine
• Paving Width: Variable up to 15’6″ with LB5 Screed
• Hopper Capacity: 12-1/2 ton
• Paving Speed: Up to 300 feet per minute (3.4 mph)
• Travel Speed: Up to 616 feet per minute (7 mph)
• Length: 18′
• Width: 8’6″ transport, 10′ hopper wings down
• Height: 8’9″
• Fuel Tank Capacity: 50 Gallons
• Hydraulic Capacity: 37 Gallons

Experience Unmatched Performance and Efficiency

The LeeBoy 8680 Asphalt Paver is an innovative solution that perfectly balances power and versatility, making it a standout choice for contractors. With its durable engine and advanced features, it excels in a variety of paving projects, from highways to large commercial sites.

Designed with user-friendly controls and enhanced operational efficiency, the 8680 not only addresses the challenges faced by paving professionals but also significantly boosts

productivity. Don’t miss the opportunity to elevate your paving operations—experience the difference the LeeBoy 8680 can make at your job site.

Contact your local Ascendum dealer today to transform your paving projects!
